1 of 12
+12- Call For Price!
-
Sleeps 7
-
4 Slides
-
Outdoor EntertainmentWalk-Thru Bath
-
45ft Long

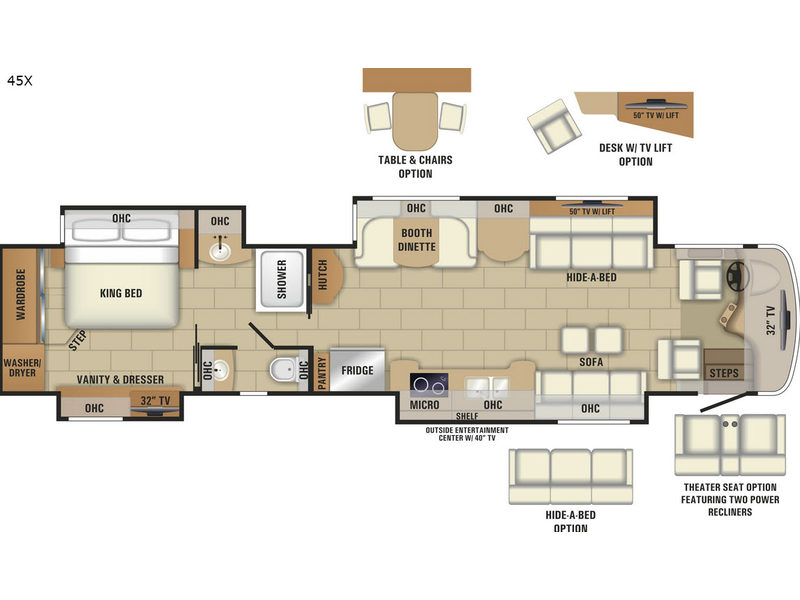

45X Floorplan
45X Floorplan
Specifications
Specifications
| Sleeps | 7 | Slides | 4 |
| Length | 44 ft 11 in | Ext Width | 8 ft 5 in |
| Ext Height | 12 ft 11 in | Int Height | 7 ft |
| Hitch Weight | 20000 lbs | GVWR | 54000 lbs |
| Fresh Water Capacity | 100 gals | Grey Water Capacity | 62 gals |
| Black Water Capacity | 41 gals | Tire Size | 22.5" |
| Fuel Type | Diesel | Miles | 37800 |
| Engine | Cummins ISX | Chassis | Spartan K3 |
| Horsepower | 605 hp | Fuel Capacity | 150 gals |
| Wheelbase | 320 in | Available Beds | King |
| Torque | 1950 ft-lb | Refrigerator Type | Residential with ice maker and water dispenser |
| Convection Cooking | Yes | Cooktop Burners | 2 |
| Axle Weight Front | 20000 lbs | Axle Weight Rear | 20000 lbs |
| Axle Weight Tag | 14000 lbs | Water Heater Type | Aqua Hot 450 diesel |
| AC BTU | 45000 btu | TV Info | LR 50" w/ lift, Front 32", BR 32", Ext. 40" |
| Awning Info | Girard Vision dual pitched | Washer/Dryer Available | Yes |
| Gross Combined Weight | 74000 lbs | Electrical Service | 50 amp |
| VIN | 4VZVU1E95JC083625 |
Description
Description
Entegra Coach Cornerstone 45X - Class A diesel motorhome highlights:
A rear primary bedroom, a walk through bath with two separate sinks, plus a combined kitchen and living area to relax and entertain are a few of the highlights in this Entegra Cornerstone class A diesel motorhome RV.
As you enter 45X you will see a front 32" TV to your right, and dual slide outs to your left. Along the passenger side there is a slide out sofa with two ottomans, a double kitchen sink, two burner range, microwave, overhead storage and a shelf. A refrigerator and pantry are next to the slide out for easy access.
On the opposite side of the coach you can relax or sleep on a slide out hide-a-bed sofa while watching a 50" TV with lift. Continuing in the slide you will find counter space, and a booth dinette. You can choose a desk with TV lift option, and/or a table with chairs if those features fit your lifestyle better. A hutch is next to the dinette for added storage.
Head towards the rear to walk through the bathroom. You will find a private toilet and sink along the curb side, and a shower with another sink within the bedroom slide out on the opposite side. You can close the two sliding bath entrance doors if you need the whole bathroom to yourself.
The bedroom slide also features a king bed with nightstands. The second slide out includes a vanity, dresser, and 32" TV along the curb side wall. Along the rear wall you can hang your clothes in the wardrobe, clean your laundry in the washer and dryer, and pose in the sliding mirrors on the wardrobe.
Don't forget about the outside entertainment center and 40" TV, plus there is much more to see inside and outside this coach.
Features
Features
Standard Features (2018)
Chassis
- Spartan K3 raised rail chassis
- Cummins 15 liter ISX turbocharged 605 HP engine 1,950 lb.-ft. torque at 1,200 RPM
- Allison 4000 MH 6-speed transmission
- 1,500 watt engine block heater
- Reyco Granning IFS independent front air suspension
- Reyco Granning rear suspension
- Reyco Granning IFS independent 20,000 lb. front axle and air suspension
- Dana rear axle 23,000-lb., tag axle 14,000-lb.
- 4.30 "Quiet-Gear" rear axle ratio
- 20,000-lb. hitch with 7/4-pin plug
- Tag axle air dump & Reyco Granning Passive Steer tag axle
- Hadley air leveling system
- Side-mounted radiator
- All-wheel ABS disc brakes
- Three-stage engine brake
- Automatic traction control
- Bilstein shocks - 60MM front and 46MM on rear/tag
- 150-gal. fuel tank (dual fill)
- Dual DEF fill 15 gallon
- Michelin 365/70R 22.5" tires (front) and 315/80R 22.5" tires (rear)
- 55-degree turning radius
- Chassis batteries (2) 12 volt
- 210-amp alternator
- Remote air connection
Construction
- X-Bridge frames welded into chassis frame
- Enclosed, insulated and heated floor and thermostat controlled heating in storage area
- Insulation with reflective Flexfoil floor (R-33), roof (R-24), sidewalls (R-16), front and rear caps (R-22)
- 2" x 4" floor truss construction
- 3/4" - 7-ply plywood main floor decking
- Aluma-Tru Superstructure construction on 12" - 16" centers
- 2-1/2" exterior wall with welded tubular aluminum construction and high-gloss, gel-coat fiberglass
- Flush-mounted electric-powered slide out rooms with Vegatouch control
- One-piece fiberglass roof with 3/8" plywood decking and 4" arched aluminum roof truss
- Steel-reinforced front cap and windshield frame
Heat, AC, Water and Power
- All electric coach
- Aqua-Hot 450 Diesel hydronic water and heating system with in-floor heat throughout
- 15,000-BTU low profile A/C's (3) with heat pumps, digital thermostat, and roof to ground condensation drain tubes
- 50-amp power cord with electric reel
- Onan 12,500-watt diesel generator with auto gen start on powered slide out tray
- (2) 3,000-watt pure sine wave inverter
- L16 AGM batteries (4), (6v/390 amp hrs. ea.)
- Premium surge protector transfer switch
- Water house w/ electric reel
- Black holding tank sprayer
- Macerator holding tank dump system w/ electric gate valves & manual back-up system
- 360 Siphon tank vent(s)
- SeeLevel tank monitoring system
- City and tank water filtration system
- Winterizing drain system
Exterior
- 3M front protective film mask
- LED high and low beam headlights
- LED fog lights
- Daytime running lights
- LED marker and turn lights the full length of the coach
- LED docking lights
- LED accent lights on underside of slide out rooms curbside
- Pulsing Third Brake Light
- Lighted grab handle with keypad system
- Keyless entry with key fob
- Deluxe concealed entry step / Lighted Entegra step
- Aire-Secure travel locks for all pocket doors
- Girard power entrance door awning with LED lights
- Girard Ultra window shade and slide out awnings
- Roof mounted Girard Vision dual pitched patio awning with LED lights
- Chrome, heated, remote control, side-view mirrors with blind-spot indicators
- Frameless, tinted, dual-pane, safety-glass windows
- Exterior 40" Samsung LED HDTV on TV bracket w/ extend, tilt and swivel arm with Samsung sound bar
- Exterior utility center, heated and enclosed with system monitor panel
- Powered slide out cargo trays (2)
- Winegard in-motion satellite dome w/ prep for Trav'ler satellite dish
- Winegard Rayzar powered TV antenna
- Power engine door
- Full-width rear mudflap, with chrome "Cornerstone" nameplate
Cockpit
- Powered flush stepwell cover
- Powered front sun visors and privacy shade
- Ultra-Vision one-piece wrap-around tinted windshield
- Air cooled, 6-way power, lumbar, heated, leather driver and passenger seats with integrated 3-point safety belts
- VIP, wood-grain, leather-wrapped, tilt and telescoping steering wheel w/ integrated controls for radio, cruise, and wipers
- Spartan Message Center with LCD display featuring: odometer, tachometer, fuel economy, fuel remaining, outside air temp., coolant temp., engine oil temp. and pressure, transmission temp., turbo boost pressure, air pressure, trip meter, speed and voltage
- All-glass paneled, dual 9" capacitive touchscreen in-dash Infotainment center with Rand-McNally RV navigation, Bluetooth, Sirius XM, AM/FM tuner, integrated camera control, house mode whole coach audio distribution, and integrated VegaTouch coach control
- JBL premium audio sound system with speakers, amplifier, and subwoofer
- Automatic hydraulic leveling jack system
- Battery boost switch
- Powered adjustable foot pedals
- Color "Total Vision" rear camera and digital side cameras
- Chrome, LED lit cup holders and three dual USB ports
Interior
- VegaTouch pad system, for complete integration of coach controls
- LED recessed 12V lighting
- High gloss 12" x 24' porcelain tile with granite inlay design
- Powered solar day and black out night shades
- Samsung 50" 4K UHDTV in living room
- Samsung 32" LED HDTV in front overhead
- Samsung 32" LED HDTV in bedroom
- Bose SoundTouch 300 sound system
- Samsung sound bar in bedroom
- Blu-ray players in living area & bedroom
- Leather hide-a-bed(s)
- Stacked washer and dryer
- Central vacuum system
- In-step storage with pull-out tray
- LED lit 1,400 watt electric fireplace standard (45B, 45Y) Optional with desk and TV lift option (45A, 45X)
Kitchen
- Dimmable LED lit quartz countertops with integrated stainless steel sink
- Pullout countertop extension with drawers
- Porcelain tile backsplash with glass design inlays and a ceramic border
- Cutting Board
- Silverware drawer
- Large deep drawer with waste basket
- Dishwasher with wood raised panel door front
- RV Chef Collection Furrion induction cooktop
- Whirpool Gold 1.9 cu. ft. convection microwave oven
- Whirlpool residential refrigerator with ice maker and water dispenser
Bedroom
- Select Comfort Sleep Number king size mattress
- Ceiling fan
- Spacious cedar-lined wardrobe with automatic light(s)
Bathroom
- LED lit quartz countertop(s) with integrated sink(s)
- Porcelain toilet(s) with push button flush
- Frameless clear glass shower door
- Porcelain tiled shower walls and floor with skylight
- Power vent and skylight
Safety
- En-telligent Collision Mitigation System equipped with Collision Warning System, Adaptive Cruise Control, Collision Mitigation System, & Electronic Stability Control
- En-telligent Blind Spot Monitoring System, tuned to detect objects within the lane of traffic on either side of the vehicle
- Security system with glass shatter sensors
- Motion sensor security lights (2)
- Smoke alarm
- Carbon monoxide alarm
- Security safe
Options
- Canadian Standards
- LED lit 1,400 watt electric fireplace standard (45B, 45Y) Optional with desk and TV lift option (45A, 45X)
- Option 1: Leather dinette booth (45A, 45B, 45F, 45W, and 45Y)
- Option 2: Dinette Booth (45X)
- Free-standing table with 4 chiars (45A, 45B, 45F, 45W, and 45Y)
- Free-standing table with 4 chairs, hide-a-bed, and curbside sofa (45X)
- Theater seating with 3 power recliners and fixed center console (45X)
- Desk with 50" TV lift, fireplace, and hide-a-bed (45A and 45X)
- Winegard Trav'ler satellite dish - DIRECTV
- Winegard Trav'ler satellite dish - Shaw Direct
- Solar panels (Dual 100-watt) w/ Morningstar SunSaver Duo solar panel charge controller
- Exterior freezer
- WiFi Extender Antenna
See us for a complete list of features and available options!
All features and specifications are subject to change.
