Floorplan - 2016 Coachmen RV Concord 300DS Chevy
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
1 of 32
+32- Our Price: $69,999
- List Price: $79,998
- Discount: $9,999
Payments From:
$478 /mo.
-
Sleeps 5
-
2 Slides
-
U Shaped DinetteRear Bedroom
-
33ft Long

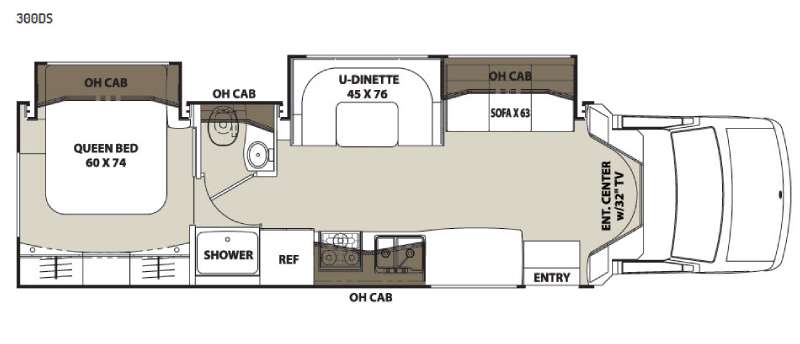

300DS Floorplan
300DS Floorplan
Specifications
Specifications
| Sleeps | 5 | Slides | 2 |
| Length | 33 ft 3 in | Ext Width | 7 ft 11 in |
| Ext Height | 10 ft 9 in | Int Height | 6 ft 6 in |
| Hitch Weight | 5000 lbs | GVWR | 14200 lbs |
| Cargo Capacity | 2225 lbs | Fresh Water Capacity | 49 gals |
| Grey Water Capacity | 53 gals | Black Water Capacity | 28 gals |
| Furnace BTU | 30000 btu | Fuel Type | Gasoline |
| Miles | 30342 | Engine | 6.0L V8 |
| Chassis | Chevy 4500 | VIN | 1GB6G5CG9F1142205 |
Description
Description
Coachmen RV Concord 300DS - Class C motorhome highlights:
Hit the road with all the comforts of home in this Coachmen Concord class C gas motorhome. Model 300DS offers double slides, a rear bedroom layout, and everything you need to enjoy your time away from home.
Straight ahead when you enter notice the large slide out sofa and u-shaped dinette. Both offer more seating space to enjoy a meal at, or to just relax and kick back after a fun filled day of adventure. You will also enjoy the 32" TV provided in the entertainment center located above the cab area.
To the left of the entrance find a large counter area, a double sink, three burner range, and overhead convection microwave oven, plus refrigerator. All the things needed to help you prepare and cook food for your family easily.
Continue on back through the coach where you will walk through a bath area to find a private toilet and vanity with sink on your right, and shower on your left. There are overhead cabinets for storage as well.
The rear private bedroom features a queen slide out bed with storage above plus nightstands. Opposite the bed find storage cabinets with space for all of your clothes and things, and a place to add an optional 24" TV if you choose, plus so much more!
This Concord motorhome can also be built on a Ford E-450 chassis with a 6.8L V10 engine in place of the Chevy 4500 model shown. The layout is identical except that the Chevy chassis does not have the option of choosing swivel front passenger and driver seats in front.
Features
Features
Standard Features (2016)
Warranty
- Motorhome – 12 Month/ 12,000 mile limited warranty
- Ford Chassis – 36 month/ 36,000 mile bumper-to-bumper warranty
- Ford Powertrain – 60 month/ 60,000 mile warranty
- Chevy Chassis – 36 month/ 36,000 mile bumper-to-bumper warranty
- Chevy Powertrain – 60 month/ 100,000 mile warranty
- Travel Easy Roadside Assistance
Automotive/Exterior/Construction
- 55-Gallon Fuel Tank (Ford)
- 57-Gallon Fuel Tank (Chevy)
- Driver & Passenger Air Bags
- Deluxe Chassis Package
- Cruise Control
- Tilt Steering Wheel
- Dash Air Conditioning
- Power Windows & Locks
- Long Arm Heated Exterior Mirrors w/Remote
- 5,000/7,500 lb. Towing Hitch w/7 Way Plug
- Laminated Floor
- Laminated Curved Sidewalls
- Crowned Laminated TPO Roof
- Steel Entry Step Box
- Carmel Exterior Moldings
- Carmel Slam Latch Trunk Doors
- Carmel Curved Entrance Door w/Window & Deadbolt
- Exterior Strut on Entrance Door
- Carmel Lamilux 4000 Sidewalls and Rear Wall
- Carmel Graphics Package
- Roto Mold Rear Trunk Box/Plasti-Cote Metal Side Boxes
- Carmel Fiberglass Rear Cap
- Carmel Fiberglass Front Cap
- Carmel Gel Coat Running Boards
- Carmel Fiberglass Wheel Skirts
- Stainless Steel Wheel Liners
- Black Slide Out Awnings (NA 300TS Dinette)
- Black Arm Power Awning w/Vinyl Weather Guard
- Aluminum Body Side Moldings
- Smooth Exterior Range Vent
- Black Rear Ladder
- Exterior LED Lights w/Center Bar
- LED Accent Strip Lights in Front Cap
- Spare Tire
- Color Backup Camera/Side View
- Air Assist Suspension
- Auto Power Entrance Step - Single
Interior Appointments
- Satin Nickel Hardware (3 3/4" Spread)
- 1 1/4" Ravine Thermo Foil Countertops
- 1" Thermofoil Dinette Table
- Congoleum® Flooring
- Vinyl Touch Soft Ceiling (NA Slide Out)
- Roller Bearing Drawer Guides Throughout
- Poplar Drawer Sides (behind doors are Techwood)
- New Lambrequins w/Day-Night Shades
- Tinted Safety Glass Radius Slider Windows
- Reclining Pilot & Passenger Seats w/2-Tone Upgrade Covers
- Booth Dinette (300TS)
- U Dinette (300DS)
- Jackknife Sofa (NA 240RB)
- Lounge Seating (240RB)
- Visionary Sofa (240RB)
- Raised Panel Upper/Flat Panel Lower Cabinet Doors
- New Glass Insert Doors in Select Areas
- House Type Bath Door
- New Slide Out Facer Board
- Black Recepts/Rotaires/Switches
- Black Curved Light-up Grab Handle at Entrance Door
- Vinyl Padded Up and Angle Pads
- Vinyl Padded Headnocker
- Upgraded Seating Foam Pak
- Removable Cab Carpeting
Interior Equipment
- Crank Up TV Antenna
- LP Leak Alarm
- Smoke Detector
- Carbon Monoxide Detector
- Fire Extinguisher
- ASA Touch Screen Radio & Backup Monitor/Side View w/Dash Speakers
- Bedroom LCD TV Backer and Connections
- Furrion 32" LCD TV, Stereo/DVD, Sound Bar & 4 Speakers
- Pre-wired for Satellite Dish thru Cable Input
- Coach Skylight w/Retractable Night Shade
- Wood Grain Dash Appliqué
- Decorative Wall Mirrors
Galley
- Convection Oven - Black
- Dometic Flush Mount, Double Door Refrigerator
- Hardwood Refer Inserts
- Deep Round Under Mount Kitchen Sink
- Composite Sink Cover - Tan
- Recessed Slim Line Range Hood
- Atwood 3-Burner Cooktop w/Grate
- Satin Nickel Kitchen Faucet w/Spray
- Dream Dinette Mechanism (300TS)
- Sure Fit Black Table Legs (240RB/300DS)
- Kitchen Splash Guard (300TS)
- Decorative Kitchen Border
Bath and Water
- Water Panel w/City/Tank/Winterize/Waste Tank Flush
- Exterior Shower
- Low Point Drain and Winterize Valve at Fresh Tank
- Power Bath Vent
- Demand Water Pump
- Stainless Steel Lavatory Sink
- Satin Nickel Single Lever Lav Faucet
- Satin Nickel Shower Faucet & Head
- Lav Mirror w/Makeup Light
- Medicine Cabinet
- Satin Nickel Shower Door - Glass
- Satin Nickel Towel Ring/Towel Rod/TP Holder/Robe Hooks
- Parchment ABS Molded Shower Pan & Surround
- Porcelain Foot Flush Toilet - Parchment
- 6-Gallon Gas/Electric E.I. Water Heater
- Skylight Over Shower
- Trunk Door at Termination
- Swing Tube Termination w/Remote Pulls (NA 240RB)
Sleeping
- Queen Bed 60x74 w/Radius Corners
- Upgrade Serta Mattress (NA 240RB)
- Bedspread & Pillow Shams (NA 240RB)
- Privacy Drape in Lower Cab
- Headboard
Electrical/Heating/A/C
- 30 amp Power Cord
- 55 amp Electronic Converter
- Auxiliary Battery
- Manual Generator Changeover
- 4.0 KW Onan Gas Generator
- GFI Circuit
- Black Manual Auxiliary Battery Disconnect
- Oval LED Porch Light
- Wall Mounted Thermostat
- 30,000 BTU Ducted Furnace
- 13,500 BTU Low Profile Ducted Roof A/C
- Recept and Coax Connect by Awning Leg (if possible)
- Deluxe Interior LED Light Package
- Directional Reading LED Lights Above Bed
- Exterior TV Ready Box
- Lighted Exterior Entry Assist Bar
- Command Center
- Exterior Rear Compartment LED Light
- Three-Speed Roof Vent in Coach
- Entrance Step Well Light
- Emergency Start Switch
- Pop Up Kitchen Charging Station
- Exterior Solar Panel Plug In Connection by Entry Door
Concord Banner Edition (Mandatory Option)
- Standard Colored High Gloss Fiberglass Sidewalls
- Fiberglass Running Boards and Fender Skirts
- Travel Easy Roadside Assistance
- LED Interior Lighting
- LED Exterior Lighting
- 4.0 KW Onan Gas Generator
- 32" TV and DVD Player
- Stainless Steel Wheel Liners
- Bluetooth AM/FM/CD Stereo
- Rear Monitor & Back Up Camera
- Power Awning
- Solar Ready
- Power Tower
- Heated and Remote Exterior Mirrors
- Power Step
- Slide Out Awning
- 5,000/7,500 lb. Hitch w/7 Way Plug
Concord Luxury Package
- Exterior Entertainment Center w/32" TV/Stereo/DVD/2 Speakers (NA 240RB)
- Exterior Entertainment Center w/24" TV/Stereo/DVD/2 Speakers (240RB)
- Dual Auxiliary Battery
- Side View Cameras
- 15,000 Low Profile A/C w/Heat Pump
- “Camping Cozy” Package (Heated Tank Pads & Extra Knife Valves)
Stand Alone Options
- 24" LCD TV & DVD in Bedroom (NA 240RB)
- Satellite Radio
- Removable Coach Carpet
- Black King Relay Satellite and Receiver
- Driver Swivel Seat (Ford)
- Passenger Swivel Seat (Ford)
- Cockpit Folding Table (for Ford Rotating Seats)
- Exterior Windshield Cover
- Electric Fireplace (300DS)
- Bedroom Power Vent Fan (NA 240RB)
- Aluminum Rims
- Hydraulic Leveling Jacks
- Full Paint - Java Chip w/Paint Mask
- Full Paint - Redwood w/Paint Mask
- Full Paint - Burgundy Glaze w/Paint Mask
- Z240 RV Compliance (Ford only)
- Canadian Compliance (Speedo/Lights) (Ford Only)
- CD-MVSA (Ford Only)
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
